Top 10 Coax Cable Types You Should Know About?
Coaxial cables, or coax cables, play a crucial role in today's communication systems. According to a market report by Allied Market Research, the global demand for coax cables is projected to reach $12 billion by 2027. This growth stems from their capacity to transmit high-frequency signals effectively. Industry expert Dr. Linda Chang emphasizes this point, stating, "Coaxial cables remain a backbone of reliable communication in various industries."
Despite their importance, many users remain unaware of the different types of coax cables available. Each type serves specific applications, from television broadcasting to internet services. For instance, RG6 cables are popular for residential setups, while RG11 cables are preferred for long-distance transmission. However, a lack of understanding about these variations can lead to suboptimal performance in installations.
Navigating coax cable options can be challenging, especially with evolving technology. Some businesses still rely on outdated cables, hindering efficiency. As technology advances, it is essential to reflect on the most suitable coax cable for your specific needs. Understanding these ten types will help you enhance your communication systems effectively.
Understanding Coaxial Cable: A Brief Overview
Coaxial cables are essential in telecommunications and broadcasting. They transmit data, video, and audio with high efficiency. Their construction features a central conductor, insulating layer, and shield, which reduces interference. According to a report by MarketsandMarkets, the global coaxial cable market is projected to reach $16 billion by 2025, reflecting the increasing demand for high-speed internet connectivity.
Different coax cable types serve various purposes. RG-6 cables are common in residential setups. They are optimal for high-frequency signals. RG-11 cables, on the other hand, are thicker and designed for longer distances. A study by ResearchAndMarkets shows that RG-6 cables account for over 50% of coaxial cable usage among households. However, many users still struggle with proper installation, leading to signal loss or degradation.
Additionally, the choice of coax cable affects overall signal quality. Poorly made cables can result in reduced bandwidth. Users often underestimate the importance of good quality connectors and proper termination. A mismatched cable can cause reflection issues, leading to data losses. It’s crucial to pay attention to these details for optimal performance.
Top 10 Coax Cable Types You Should Know About
| Coax Cable Type |
Frequency Range (MHz) |
Impedance (Ω) |
Common Uses |
Cable Diameter (mm) |
| RG-6 |
5 - 1000 |
75 |
Cable TV, satellite TV |
6.9 |
| RG-59 |
5 - 1000 |
75 |
CCTV, low-frequency applications |
6.5 |
| RG-11 |
5 - 1000 |
75 |
Long-distance cable runs |
10.3 |
| RG-6Q |
5 - 3000 |
75 |
HD TV, digital signal transmission |
6.9 |
| RG-8 |
10 - 1000 |
50 |
Radio communications |
10.3 |
| LMR-400 |
0.2 - 5000 |
50 |
Wireless communications, antennas |
10.3 |
| RG-174 |
0.1 - 3000 |
50 |
Wireless data transmission |
3.2 |
| RG-213 |
10 - 2000 |
50 |
General RF applications |
10.3 |
| RG-58 |
5 - 1000 |
50 |
Networking, radio systems |
4.95 |
| RG-62 |
1 - 1000 |
93 |
Data communications |
6.5 |

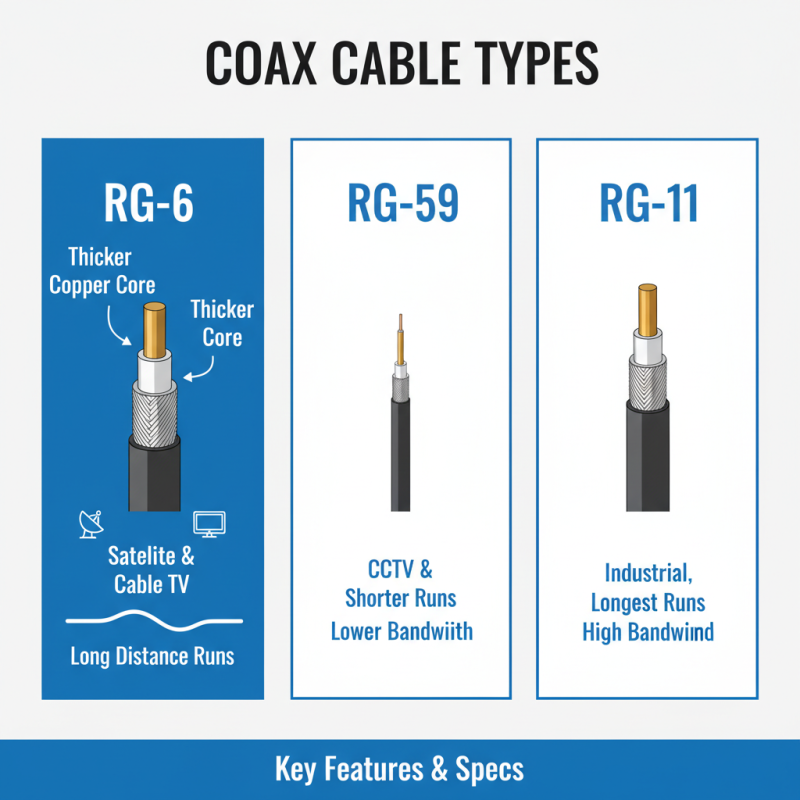

Different Types of Coaxial Cables and Their Applications
Coaxial cables come in many types, each serving different purposes. One common type is RG-6, widely used for internet and cable TV. It offers better shielding, which reduces interference. Then there's RG-59, often used for security cameras. It has less insulation and may not handle high frequencies well.
Another important type is RG-11. This cable provides lower signal loss over longer distances. However, it's thicker and less flexible. In contrast, there’s the RG-8, which is popular in radio communications. It can carry high power but can be cumbersome to work with. Each type has its nuances, making it essential to choose the right one for your specific application.
Selecting the appropriate coaxial cable is not straightforward. Distances, frequencies, and shielding all play a role. Sometimes, users overlook these details, affecting performance. For instance, using RG-59 for a long-distance internet connection might yield poor results. Recognizing the unique qualities of each coax type can save time and frustration in the long run.
Key Features and Specifications of Popular Coax Cable Types
Coaxial cables come in various types, each designed for specific applications. Understanding their features can help you choose the right one for your needs. For instance, RG-6 cables are popular for satellite and cable TV. They feature a thicker copper core, providing higher bandwidth and better signal quality. This type is beneficial for long-distance runs.
Another commonly used type is RG-59. It has a smaller conductor, making it less ideal for high-frequency signals. It works well in security cameras and short-distance uses. Yet, it may not perform well with HD signals. Reflecting on these factors, many choose RG-6 for its versatility while RG-59 is often overlooked and misapplied.
When looking at coax cables, consider the specifications. Impedance is crucial; most cables are either 75 ohms or 50 ohms. The choice depends on the application. For example, 75-ohm cables are standard for TVs, while 50-ohm cables suit radio frequencies. Be aware of connectors too. The right connector can make a significant difference in performance.
How to Choose the Right Coax Cable for Your Needs
When selecting a coax cable, several factors matter. Consider the frequency range. Cables like RG-6 support frequencies up to 3 GHz, making them ideal for satellite and cable TV. However, RG-11, rated for higher performance, goes up to 3.5 GHz. This is essential for modern applications, providing clearer signals.
Length is also crucial. Longer cables can lead to signal loss. A study found that every 100 feet of RG-6 results in a 3 dB signal loss at 1 GHz. If you're using it for high-definition video, minimizing length is often smarter. Furthermore, the cable's shielding matters. Cables with better shielding protect against interference, which is critical in urban environments. This enhances overall performance, especially when dealing with multiple devices.
Cable connectors can impact connectivity. A poor connector undermines even the best cable. Look for connectors that match your needs. Identify the connectors your devices require. Lastly, consider your budget. Cheaper cables may not last as long. Investing in quality can save you issues down the line.
Top 10 Coax Cable Types You Should Know About
This chart displays the thickness (in AWG) of different types of coaxial cables, helping you to understand the variations in size and suitability for different applications.
Maintenance and Troubleshooting Tips for Coaxial Cables
Coaxial cables are essential for transmitting data effectively. To maintain their performance, regular inspection is vital. Look out for any signs of wear, such as frays or cracks. A damaged cable can lead to poor signal quality. Replace cables that show these issues promptly.
Troubleshooting is another key aspect of coaxial cable management. If you experience signal loss, first check your connections. Loose connectors can disrupt the signal. Ensure all fittings are tight. Additionally, try repositioning the cable. Sometimes, electromagnetic interference causes problems. Move cables away from other electronic devices to reduce this risk.
Lastly, keep your coaxial cables neatly organized. Knots and bends can damage internal wiring over time. Use cable ties or clips for proper arrangement. Consider storage options that keep cables straight when not in use. Regular maintenance and mindful organization are crucial for optimum cable performance.
