2026 How to Choose the Best RF Cable for Your Needs?
Choosing the right RF cable is crucial for ensuring optimal performance in your communication systems. With various types available, it can be overwhelming. RF cables come in different lengths, materials, and connectors. Each specification affects signal quality and durability.
For instance, low-loss cables reduce signal degradation, while specific connectors may suit certain devices better. It's essential to assess your requirements carefully. Consider factors such as frequency range, installation environment, and budget. Seeking expert advice can help narrow your choices.
However, many overlook the importance of compatibility. Using the wrong cable can lead to poor performance. Therefore, take time to analyze your needs. Understand what works best for your unique setup. Balancing quality with cost can be challenging but is essential for reliable communication.
Understanding RF Cable Types: Coaxial, Twisted Pair, and Fiber Optic
When selecting RF cables, it's essential to understand the differences between coaxial, twisted pair, and fiber optic cables. Coaxial cables are widely used in television and internet connections. They consist of a central conductor, insulating layer, and outer shield. This construction allows for minimal interference and better signal quality. According to a recent industry report, coaxial cables handle frequencies up to 3 GHz, making them suitable for most RF applications.
Twisted pair cables, on the other hand, consist of pairs of wires twisted together. This design reduces electromagnetic interference, which is crucial in data transmission. The market report highlights that twisted pair cables are often used in telecommunications and networking. While they can handle lower frequencies compared to coaxial cables, their flexibility and reduced noise make them an excellent choice for many applications.
Fiber optic cables represent the latest advancement in RF technology. They use light signals to transmit data, allowing for high-speed connections over long distances. Industry studies indicate fiber optic cables can transmit data at speeds exceeding 10 Gbps. However, installation can be costly and complex, presenting potential challenges. Reflecting on your specific needs can guide you to the right choice among these cable types.
2026 RF Cable Types Comparison
Key Parameters for RF Cable Selection: Impedance, Attenuation, and Frequency
When selecting RF cables, understanding key parameters is crucial.
Impedance is one of the most important factors.
It should match the equipment you use. Mismatched impedance can lead to signal loss.
Common standards include 50 ohms and 75 ohms. Always confirm the specification of your device.
Another critical factor is attenuation. It measures how much signal strength diminishes over distance.
Lower attenuation values ensure better performance. This becomes essential in long-distance applications.
Choose cables with minimal signal loss for the best results.
Tip: Always check the cable's attenuation over the required frequency range.
This provides insight into how the cable will perform. Frequency affects both impedance and attenuation.

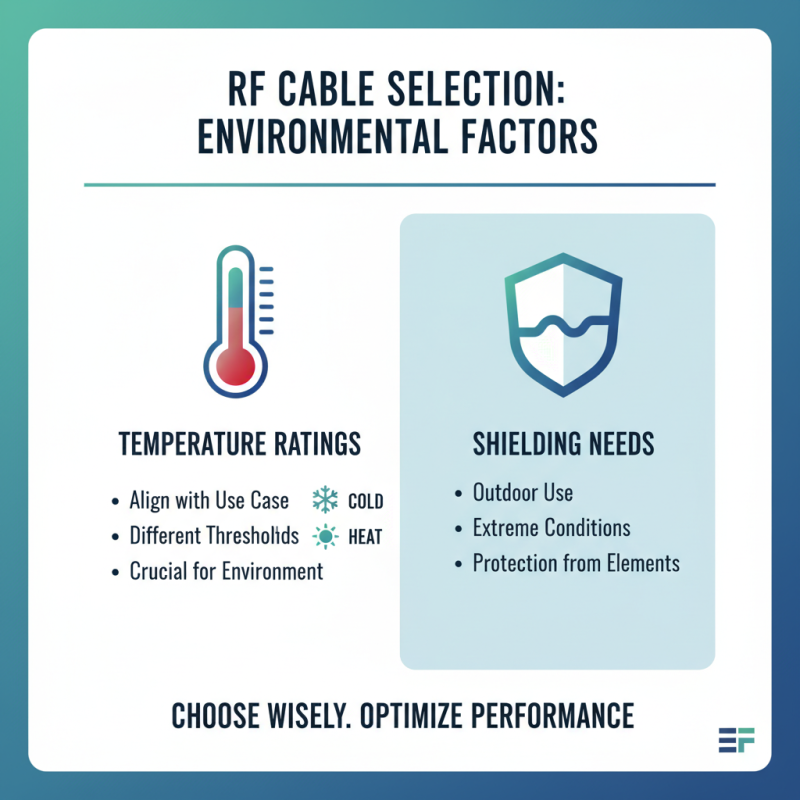

Lastly, consider environmental factors. Temperature and moisture can impact cable integrity.
Picking a suitable cable requires considering the operational environment as well.
Evaluating Connector Types for RF Cables: BNC, N-Type, and SMA
When selecting RF cables, understanding connector types is crucial. BNC, N-Type, and SMA connectors each serve different purposes. BNC connectors are popular in video and test equipment. They offer a simple twist-lock mechanism, making connections quick and reliable. However, they can struggle with high frequencies, limiting their use in advanced applications.
N-Type connectors are designed for high-frequency performance. Their robust construction ensures minimal signal loss, making them ideal for outdoor and high-power environments. Still, their larger size can be a drawback in tight spaces. Meanwhile, SMA connectors are compact and perfect for microwave applications. Their screw-on design provides a secure fit and excellent performance, but they may not handle heavy loads as well.
Choosing the right connector can significantly impact performance. Consider the environment and application. Each connector has its strengths and weaknesses. Good choices depend on weighing these aspects carefully. It's essential to reflect on your specific needs before making a decision.
Budget Considerations: Cost vs. Performance in RF Cable Selection
When selecting RF cables, budget considerations play a crucial role. The relationship between cost and performance is often complicated. High-end cables might promise superior performance, but are they necessary for your specific needs?
Consider your application first. If you're using the cable for short-range connections, a mid-range option may suffice. But for high-frequency applications, you might need to invest more. Cheaper cables can deliver unsatisfactory performance, leading to signal loss. This compromises overall system functionality.
Take time to evaluate different options. Sometimes, paying a little more can yield significant improvements in reliability. Yet, it's also easy to overspend on features that may never benefit your setup. Assess your actual needs carefully. This reflection is vital for making a sound financial decision while ensuring performance quality.
2026 How to Choose the Best RF Cable for Your Needs? - Budget Considerations: Cost vs. Performance in RF Cable Selection
| Type of RF Cable |
Length (meters) |
Cost ($) |
Performance Rating |
Best Use Cases |
| Coaxial |
10 |
30 |
8/10 |
General RF applications |
| Semi-Rigid |
5 |
50 |
9/10 |
High-frequency applications |
| LMR |
15 |
45 |
8.5/10 |
Connecting antennas |
| RG-58 |
20 |
25 |
7/10 |
Short connections, low power |
| RG-6 |
12 |
35 |
7.5/10 |
Television and satellite signals |
