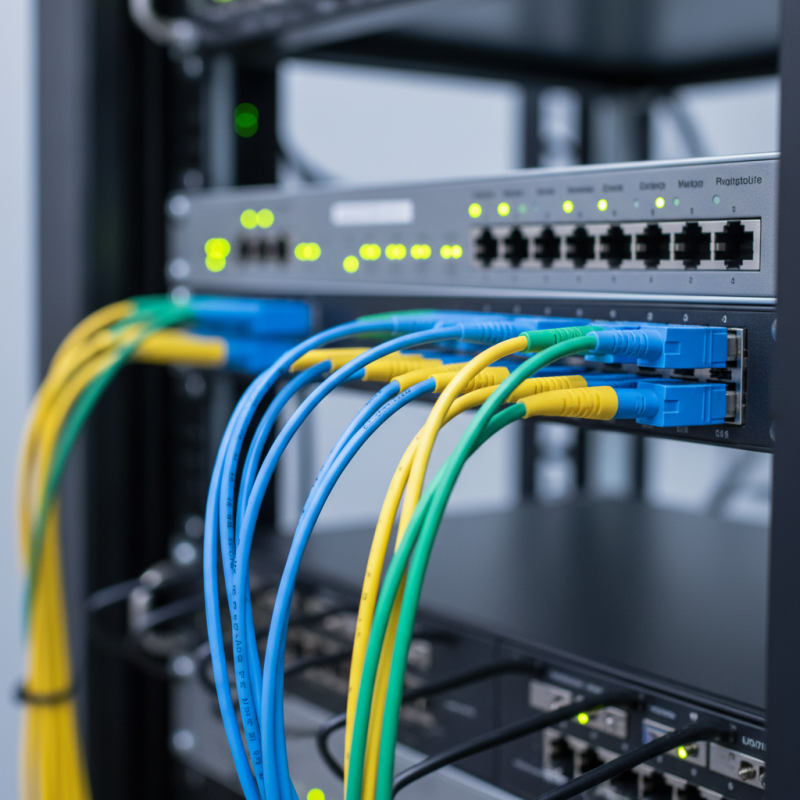

What is a Fiber Patch Cable and How is it Used?
In today's digital age, connectivity is crucial. A fiber patch cable plays a key role in this landscape. It serves as a bridge between devices and networks, allowing high-speed data transfer. The design of a fiber patch cable is simple yet effective. Typically, it features fiber optic strands encased in protective jackets. This construction enables it to transmit data over long distances without losing signal quality.
Understanding how a fiber patch cable is used is important for anyone in the tech field. They connect routers, switches, and servers. Different types exist, including single-mode and multi-mode cables. Each serves specific purposes based on distance and bandwidth needs. However, not every application requires a fiber patch cable. In some situations, copper cables may suffice. It's essential to assess your network's demands carefully.
Using fiber patch cables can seem straightforward but comes with challenges. Installation can be tricky without proper tools and expertise. Additionally, maintaining these cables requires knowledge of best practices. Identifying the right type for your setup is not always easy. The choice impacts your network's efficiency significantly. So, as technology evolves, reevaluating your cabling options is wise. This ensures optimal performance and future-proofing your infrastructure.
What is a Fiber Patch Cable and Its Key Components
Fiber patch cables are essential for establishing fast and reliable connections in various networking environments. These cables are made from strands of glass or plastic that carry data as light impulses. This design allows for high bandwidth and longer transmission distances compared to traditional copper cables.
Key components of a fiber patch cable include the fiber optic core, cladding, and protective jacket. The core carries the light signals, while the cladding reflects the light back into the core, preventing signal loss. The protective jacket safeguards the inner components from damage and environmental factors. Choosing the right type of connector is also crucial. Common connectors include SC, LC, and ST types, each with specific applications.
**Tip:** When installing fiber patch cables, handle them with care. Avoid bending them sharply as this can cause signal loss or damage.
Another aspect to consider is cleanliness. Dust or smudges on the fiber ends can result in poor performance. Always use a fiber cleaning kit before connecting cables.
**Tip:** Store fiber patch cables in a cool, dry place. Excess heat can degrade performance over time.
Understanding these components and tips can enhance your network's performance and ensure long-lasting connectivity.
Fiber Patch Cables Overview
This chart illustrates the various types of fiber patch cables and their respective quantities. Single-mode and multi-mode fibers are the most common, while connectors like LC and SC are widely used for their efficiency in networking applications.
Types of Fiber Patch Cables: Single-Mode vs. Multi-Mode
Fiber patch cables are essential for connecting network devices. They come in two main types: single-mode and multi-mode. Each type has distinct features and uses.
Single-mode fibers are designed for long-distance communication. They transmit light directly down a single strand of fiber. This allows for lower attenuation and higher bandwidth over longer distances. They are typically used in applications like telecommunications and large data centers. However, they can be more expensive and require precise alignment.
Multi-mode fibers, on the other hand, are used for shorter distances. They allow multiple light paths or modes to propagate through the fiber. This design makes them suitable for local area networks and data centers. While they have a shorter range, they are more cost-effective. Their installation is generally easier, yet they can suffer from modal dispersion over longer distances.
Tips: Consider your communication needs when choosing the fiber type. If you plan for future scaling, single-mode offers more flexibility. Always check compatibility with your existing equipment. Avoid using a multi-mode cable for long distances to prevent signal loss.
What is a Fiber Patch Cable and How is it Used? - Types of Fiber Patch Cables: Single-Mode vs. Multi-Mode
| Type |
Core Diameter |
Maximum Distance |
Application |
| Single-Mode |
8-10 µm |
Up to 40 km |
Long-distance communication |
| Multi-Mode |
50-62.5 µm |
Up to 300 m |
Short-distance communication |
| OM1 (Multi-Mode) |
62.5 µm |
Up to 275 m |
Data centers; LAN applications |
| OM2 (Multi-Mode) |
50 µm |
Up to 600 m |
Data centers; higher speed applications |
| OM3 (Multi-Mode) |
50 µm |
Up to 300 m at 10 Gb/s |
High-speed networks |
| OM4 (Multi-Mode) |
50 µm |
Up to 400 m at 10 Gb/s |
Data centers; high speed over longer distances |
Industry Standards and Specifications for Fiber Patch Cables
Fiber patch cables are essential components in fiber optic networks. These cables connect different devices, allowing data to transfer at high speeds. Industry standards set by organizations such as the Telecommunications Industry Association (TIA) establish specifications for these cables. For instance, TIA-568 outlines the performance requirements for fiber cables, ensuring optimal data transmission.
The maximum length for a standard single-mode fiber patch cable is typically 10 kilometers. This distance can limit performance, especially in larger networks. Additionally, multimode fibers are governed by standards like OM3 and OM4, which define bandwidth and distance capabilities. OM4 cables can support data rates up to 100 Gbps over distances of 150 meters. However, the real-world performance often falls short due to installation issues or poor connections.
While adhering to these standards is vital, discrepancies may still arise. Variations in cable quality or installation mistakes can impact network performance. Regular testing and adherence to industry protocols can help mitigate these issues. Continued training and awareness are necessary to maintain network integrity and performance in a rapidly evolving tech landscape.

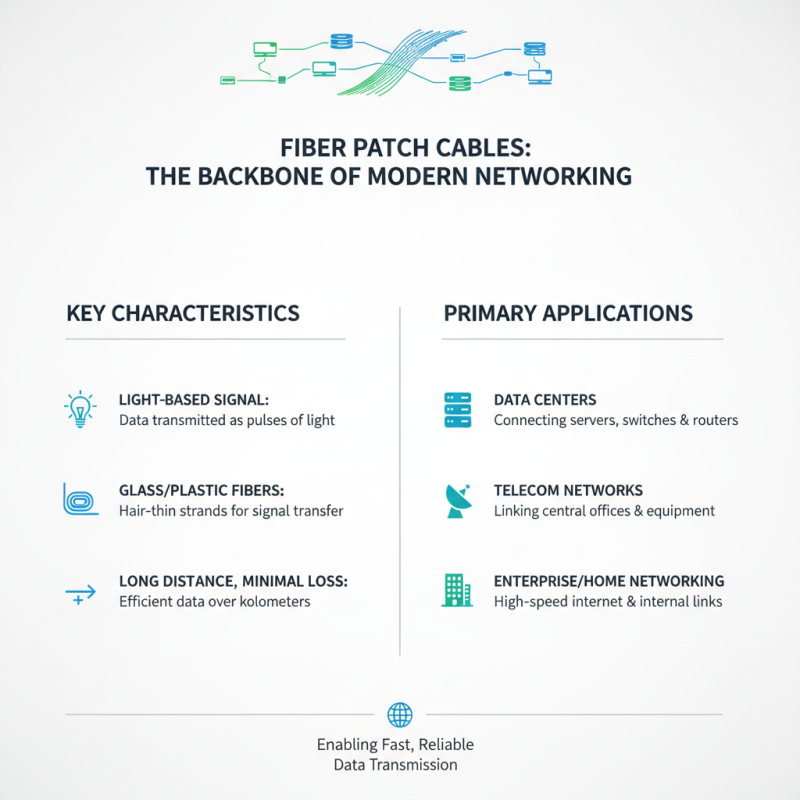

Applications of Fiber Patch Cables in Networking and Telecommunications
Fiber patch cables are essential components in networking and telecommunications. These cables connect various devices, enabling data transmission over long distances with minimal loss. They are made of glass or plastic fibers, and they carry signals in the form of light. Their applications vary widely, from connecting servers to routers in data centers, to linking equipment in telecommunications networks.
In modern networking, fiber patch cables play a crucial role in enhancing performance. They support high-speed internet and improve bandwidth capacity. In offices and homes, they provide reliable connections for internet services. For telecommunications, they are vital in the infrastructure that connects cities and countries, ensuring clear and fast communication. Despite their advantages, some users overlook the importance of proper installation and maintenance. Mistakes in handling or connecting cables can lead to signal degradation. It's essential to double-check connections and use the right tools. This attention to detail is often underestimated but can greatly impact network efficiency.

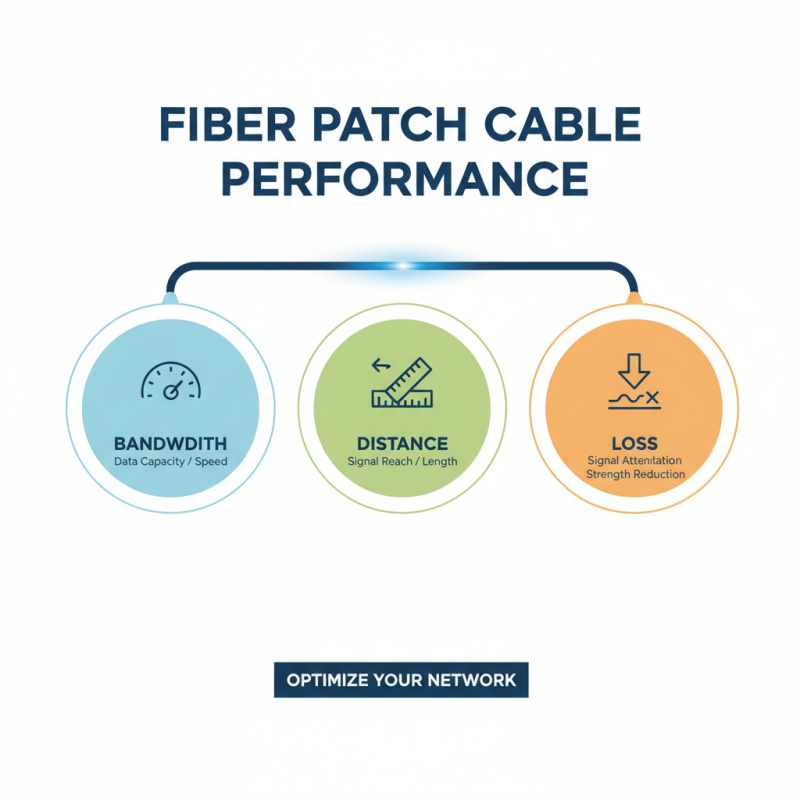

Performance Metrics: Bandwidth, Distance, and Loss in Fiber Patch Cables
Fiber patch cables are essential components in modern networking. Understanding their performance metrics is crucial for optimizing communication systems. Key parameters include bandwidth, distance, and loss.
Bandwidth determines how much data can be transmitted at once. According to industry reports, single-mode fiber cables can support bandwidths exceeding 10 Gbps over long distances. This capability is vital in settings that require high-speed data transfer. However, it’s important to consider that the bandwidth may decrease due to various factors like interference and cable quality.
Distance is another critical factor. Fiber patch cables can typically transmit data over several kilometers without significant loss. Yet, performance can degrade with increased length. For example, multimode fibers are limited to about 300 meters for high-speed signals. Loss measures the reduction of signal strength, often given in decibels (dB). Up to 0.2 dB/km is acceptable for multimode fibers, according to standards. Nonetheless, many installations face challenges with higher loss rates, leading to inefficiencies. Proper planning and regular assessments are necessary to mitigate these issues.
