How to Choose Coax Cable Assemblies for Global Sourcing
Choosing coax cable assemblies for global sourcing is not simply a price comparison. It requires a clear view of performance, production capability, and long-term supply reliability. A cable that works well in a laboratory may fail after repeated bending, temperature changes, or rough installation handling. Real-world details matter.
Start with the signal requirements. Confirm impedance, frequency range, attenuation, shielding effectiveness, connector type, and acceptable return loss. These specifications should match the equipment, not merely the supplier’s catalog description. Ask for drawings, material details, inspection records, and sample test results. Experienced buyers also examine connector plating, jacket flexibility, braid coverage, and bend radius. Small differences can create expensive field problems.
Supplier evaluation needs evidence. Review manufacturing experience, quality controls, traceability, testing equipment, and capacity for repeat orders. Independent verification can strengthen confidence when documentation appears incomplete. It is also wise to compare production samples from more than one source. Samples can be misleading, though. A strong prototype does not guarantee stable mass production.
Global sourcing adds practical risks. Shipping distance, packaging, communication gaps, customs documentation, and regional technical requirements can affect delivery and acceptance. Build these factors into the decision. Do not select coax cable assemblies on unit price alone. The cheapest option may produce higher replacement, testing, and downtime costs.
There is no perfect checklist. Tradeoffs remain. A highly flexible cable may provide lower mechanical strength, while improved shielding can increase diameter and cost. A careful sourcing process records these compromises openly. It connects engineering evidence with supplier experience, creating a more dependable purchasing decision.
Define Application Requirements: Frequency, Impedance, Power, and VSWR ≤1.5

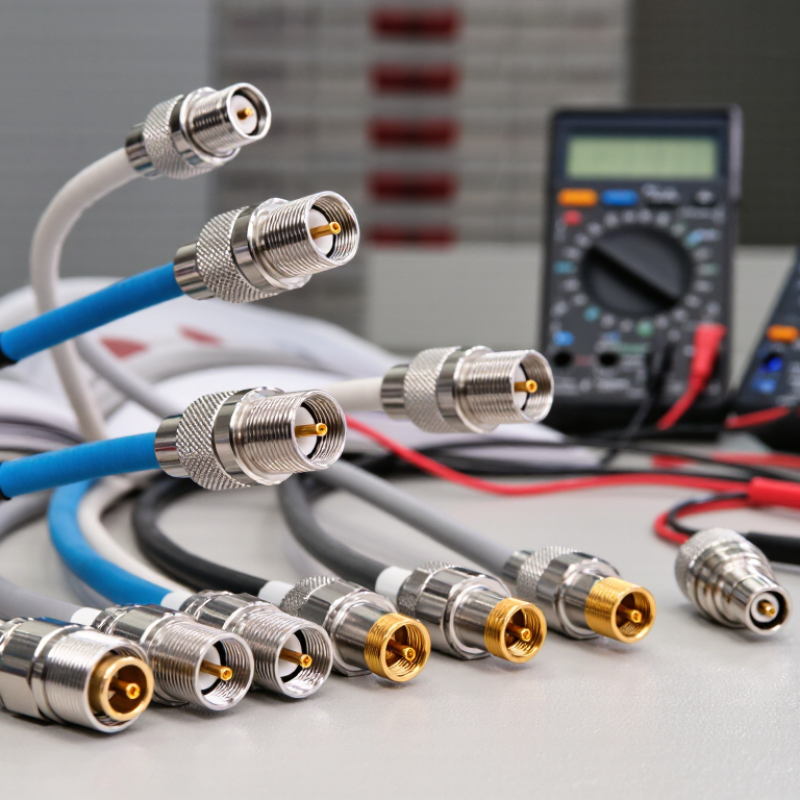

How to Choose Coax Cable Assemblies for Global Sourcing
Define the application before comparing suppliers. Start with operating frequency, impedance, power, and connector type. A cable for a 6 GHz test fixture may fail in a 2 GHz power path. Impedance must match the equipment, usually 50 ohms or 75 ohms. Even a short mismatch can increase reflections and measurement error. Set a clear VSWR target of 1.5 or lower across the full frequency range. Do not guess.
Power handling requires more than a single headline rating. Check average power, peak power, duty cycle, ambient temperature, and cable length. At higher frequencies, heat and insertion loss can reduce the safe operating margin. Ask for measured insertion loss, return loss, and VSWR data at your actual frequencies. A generic “low loss” statement is not enough. I have seen assemblies pass a basic continuity check yet perform poorly above the specified band.
For global sourcing, provide a controlled drawing with dimensions, materials, bend limits, and connector details. Specify the test method, calibration standard, and acceptable inspection records. Request samples from production tooling, not only laboratory prototypes. Confirm results from multiple samples and lots. Small differences in connector torque or cable routing can change VSWR noticeably. My own specifications have sometimes been too broad, especially around bend radius. Revising them after testing prevented repeat problems, but earlier precision would have saved time. Reliable sourcing depends on traceable data, repeatable testing, and honest limits.
Match Cable Types to Standards: 50 Ω RF and 75 Ω Video Applications
When sourcing coax cable assemblies globally, start with the signal’s impedance, not the connector shape. A 50 Ω RF assembly suits wireless modules, antennas, test equipment, and many data links. A 75 Ω video assembly supports broadcast, surveillance, and digital video systems. The difference may look small, but impedance mismatch can create reflections, insertion loss, and visible signal problems.
Check the complete signal path. A 50 Ω cable connected to a 75 Ω device can weaken performance, even when the connector fits perfectly. Review operating frequency, attenuation, shielding coverage, bend radius, and temperature limits. For video applications, confirm the required interface standard and cable geometry. For RF applications, request return-loss data across the working frequency range. I have seen assemblies pass a basic continuity check yet fail under real frequency testing.
Global suppliers should provide drawings, material specifications, tolerance data, and inspection records. Ask how each assembly is tested, including connector attachment and cable movement. Standards may differ between markets, so verify the applicable regional requirements before placing an order. A small labeling error can delay installation. That detail is easy to underestimate. Cost comparisons also need care. Lower unit pricing may hide longer lead times, weaker shielding, or inconsistent batch quality. No single cable type solves every application, and that assumption deserves another review.
Evaluate Assembly Loss: Use dB per Meter at the Target Frequency
When sourcing coax cable assemblies globally, evaluate loss at the frequency your system actually uses. A cable rated at 1 GHz may perform differently at 6 GHz. Request attenuation in dB per meter, not only a broad performance range. Compare values measured under the same impedance, temperature, and test conditions. Otherwise, the numbers may look precise but remain difficult to trust.
Measure the real assembly. Include cable length, connectors, adapters, and repeated bends in the estimate. A 2-meter cable with 0.25 dB/m loss creates 0.5 dB before connector losses appear. Two connectors may add more than expected. Small differences can affect receiver sensitivity, transmitter output, and link margin. I have seen sourcing decisions change after testing assemblies instead of reviewing cable-only data.
Do not guess. Ask for insertion-loss curves, lot-specific test records, and calibration details for the measurement equipment. A reliable supplier should explain conductor materials, dielectric construction, shielding, and connector termination controls. Sample several production lots, especially when suppliers or factories differ by region. Temperature cycling and flex tests can expose changes that a single bench measurement misses. One weakness remains: laboratory results may not represent installation conditions. Leave practical margin for routing, vibration, contamination, and operator handling.
How to Choose Coax Cable Assemblies for Global Sourcing - Evaluate Assembly Loss: Use dB per Meter at the Target Frequency
| Generic Cable Family |
Impedance |
Nominal OD |
Target Frequency |
Cable Loss
(dB/m) |
Connector Loss
(dB/each) |
Estimated 3 m Assembly Loss
(dB) |
Typical Sourcing Application |
| Miniature flexible coax, 50 ohm |
50 Ω |
2.8 mm |
2.4 GHz |
1.05 |
0.20 |
3.55 |
Compact wireless modules and internal equipment wiring |
| Miniature flexible coax, low-loss variant |
50 Ω |
3.0 mm |
2.4 GHz |
0.82 |
0.18 |
2.82 |
Portable equipment and short antenna feed lines |
| General-purpose flexible coax |
50 Ω |
5.0 mm |
900 MHz |
0.43 |
0.16 |
1.61 |
Radio equipment, control systems, and sub-1 GHz links |
| General-purpose flexible coax |
50 Ω |
5.0 mm |
2.4 GHz |
0.88 |
0.18 |
3.00 |
Short WLAN, telemetry, and instrumentation connections |
| Low-loss flexible coax, 5 mm class |
50 Ω |
5.0 mm |
2.4 GHz |
0.52 |
0.16 |
1.88 |
Longer wireless interconnects and laboratory test equipment |
| Low-loss flexible coax, 6 mm class |
50 Ω |
6.1 mm |
2.4 GHz |
0.39 |
0.15 |
1.47 |
Base-station feeders, access points, and higher-power RF systems |
| Low-loss flexible coax, 6 mm class |
50 Ω |
6.1 mm |
6.0 GHz |
0.68 |
0.18 |
2.40 |
High-frequency wireless, radar accessories, and test fixtures |
| Semi-rigid coax, 3.6 mm class |
50 Ω |
3.6 mm |
10 GHz |
0.95 |
0.12 |
3.09 |
Compact microwave assemblies requiring stable shielding |
| Semi-rigid coax, 2.2 mm class |
50 Ω |
2.2 mm |
18 GHz |
1.65 |
0.15 |
5.25 |
High-frequency modules, analyzers, and microwave test paths |
Calculation basis: Estimated 3 m assembly loss = cable loss per meter × 3 m + two connector insertion losses. Values are representative nominal selection figures; final sourcing decisions should use the supplier’s tested attenuation data at the exact operating frequency, cable length, connector type, and temperature range.
Compare Global Suppliers by MOQ, Lead Time, Testing, and Traceability
How to Choose Coax Cable Assemblies for Global Sourcing
When comparing global suppliers, start with MOQ, not price. A low unit cost may hide excess inventory, storage fees, and slow-moving cable types. Ask whether the MOQ applies per length, connector combination, or production batch. In one sourcing project, a 1,000-piece MOQ created months of unused stock. The forecast was too optimistic. That mistake changed our purchasing review.
Lead time needs a clear definition. It may cover engineering approval, production, inspection, packing, and shipping. Request separate estimates for standard and custom assemblies. Testing should include impedance, insertion loss, return loss, continuity, and connector pull force. For harsh installations, ask about temperature cycling and cable bend performance. Test reports should identify sample numbers, instruments, dates, and acceptance limits. Vague reports are difficult to trust.
Tips: Request a traceability sample before placing an order. Check whether each reel, carton, and test report shares the same lot code. Ask for material certificates and inspection records. Confirm how nonconforming assemblies are isolated and replaced. Keep communication in writing. Also, compare realistic delivery windows, not ideal promises. A supplier may pass electrical tests but still lack consistent labeling. That small weakness can delay incoming inspection. Build a scoring sheet for MOQ, lead time, testing depth, documentation, and response quality. Review it with engineering and logistics teams, because purchasing alone may miss practical risks.
